Vaughan Irrigators USA
Boquillas - Junior
Boquillas - Junior
Precio habitual
$16.60 USD
Precio habitual
Precio de oferta
$16.60 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

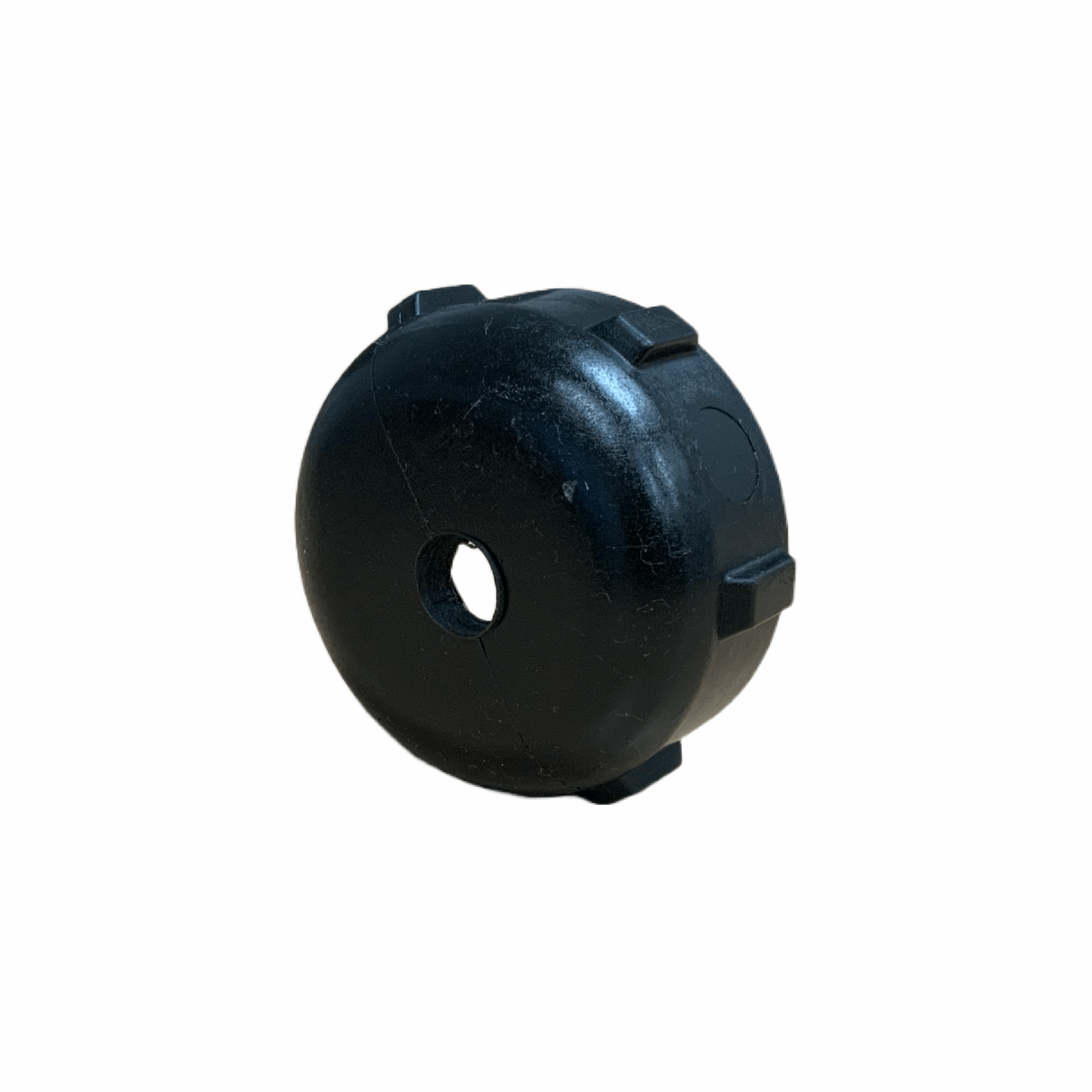

Fabricadas con polipropileno resistente, estas boquillas están diseñadas para soportar las tareas de riego más exigentes. Su tamaño compacto las hace ideales para el irrigador Junior.
Performance Indicators: Junior Irrigator
| Nozzle | Flow (GPM) | PSI | Wetted Width (ft) | Area Covered (acres / 300 ft run) | Application Rate - 2 Hours (in) | Application Rate - 3 Hours (in) | Application Rate - 6 Hours (in) |
|---|---|---|---|---|---|---|---|
| 5/16" | 19 | 10 | 52 | 0.44 | 0.19 | 0.28 | 0.57 |
| 22.2 | 15 | 62 | 0.57 | 0.19 | 0.28 | 0.56 | |
| 25.4 | 20 | 72 | 0.64 | 0.18 | 0.27 | 0.54 | |
| 1/2" | 44.4 | 10 | 56 | 0.47 | 0.41 | 0.61 | 1.23 |
| 57.1 | 15 | 66 | 0.57 | 0.42 | 0.63 | 1.25 | |
| 63.4 | 20 | 75 | 0.67 | 0.43 | 0.64 | 1.28 | |
| 5/8" | 88.8 | 15 | 59 | 0.52 | 0.77 | 1.16 | 2.31 |
| 101.4 | 20 | 69 | 0.62 | 0.75 | 1.13 | 2.26 | |
| 114.1 | 25 | 79 | 0.72 | 0.73 | 1.10 | 2.20 |
Performance Indicators: Standard Irrigator
| Nozzle | Flow (GPM) | PSI | Wetted Width (ft) | Area Covered (acres / 600 ft run) | Application Rate - 4 Hours (in) | Application Rate - 6 Hours (in) | Application Rate - 12 Hours (in) |
|---|---|---|---|---|---|---|---|
| 1/2" | 30 | 20 | 75 | 1.14 | 0.28 | 0.4 | 0.8 |
| 60 | 25 | 62 | 0.57 | 0.19 | 0.28 | 0.56 | |
| 108 | 30 | 72 | 0.64 | 0.18 | 0.27 | 0.54 | |
| 5/8" | 48 | 20 | 56 | 0.47 | 0.41 | 0.61 | 1.23 |
| 78 | 25 | 66 | 0.57 | 0.42 | 0.63 | 1.25 | |
| 126 | 30 | 75 | 0.67 | 0.43 | 0.64 | 1.28 | |
| 3/4" | 48 | 20 | 59 | 0.52 | 0.77 | 1.16 | 2.31 |
| 96 | 25 | 69 | 0.62 | 0.75 | 1.13 | 2.26 | |
| 126 | 30 | 79 | 0.72 | 0.73 | 1.10 | 2.20 |
