Aluminum 2" Female Camlock x 2" Male NPT
Aluminum 2" Female Camlock x 2" Male NPT
Couldn't load pickup availability
Description

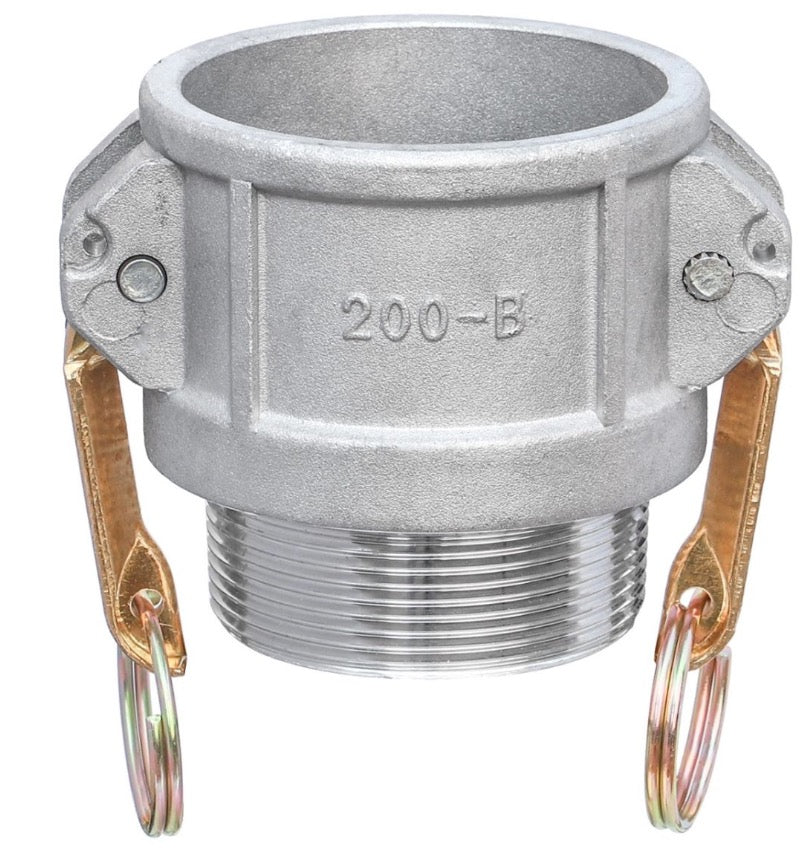

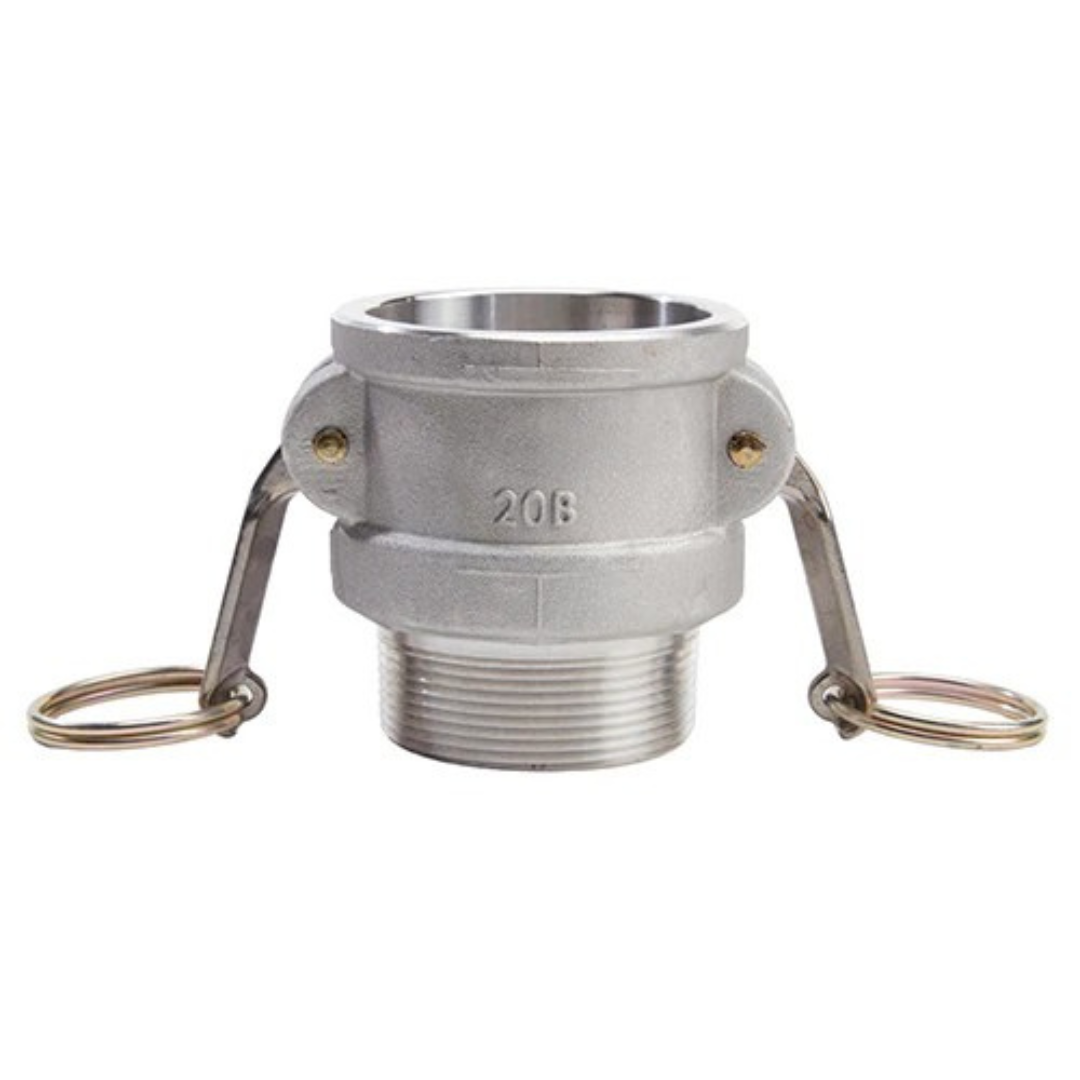

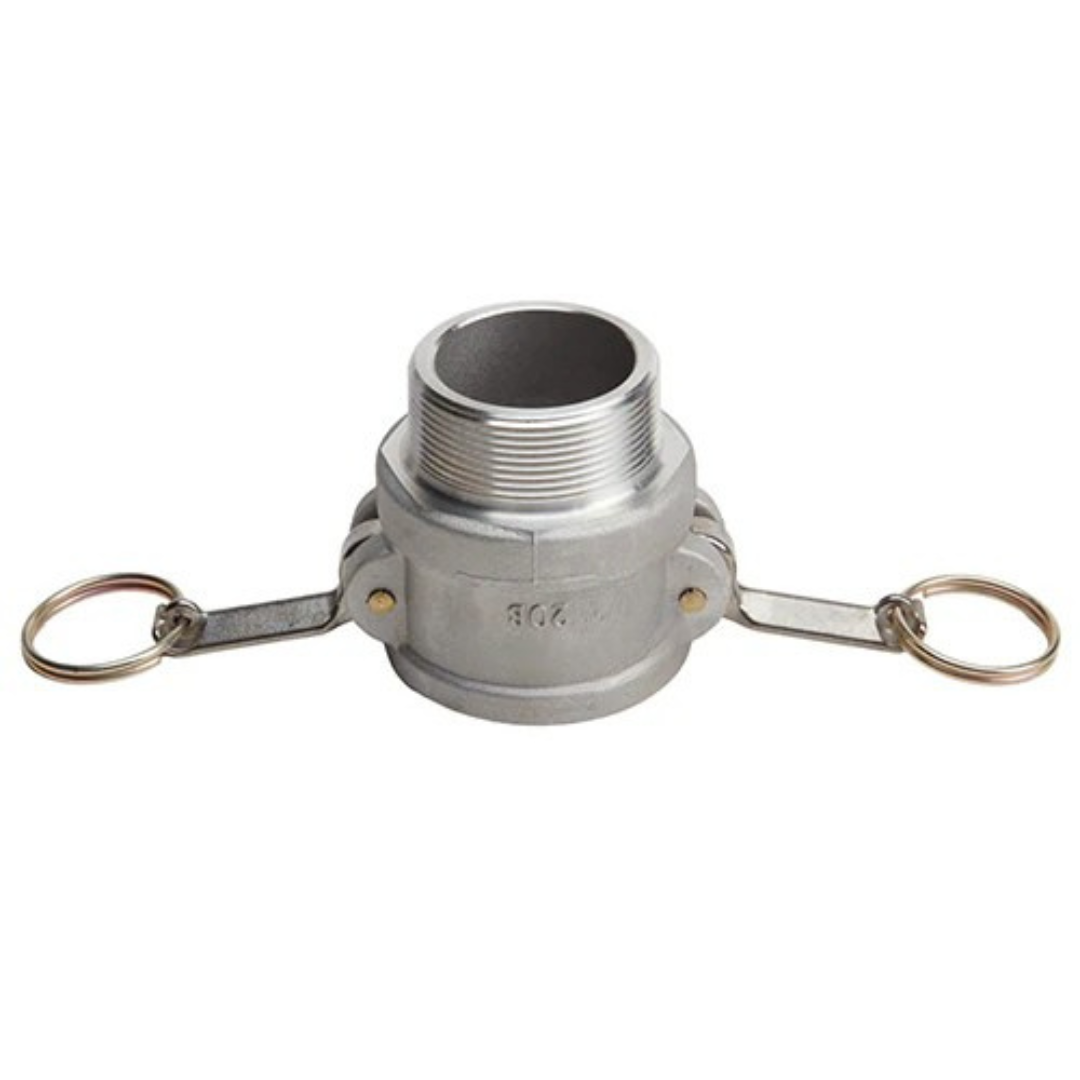

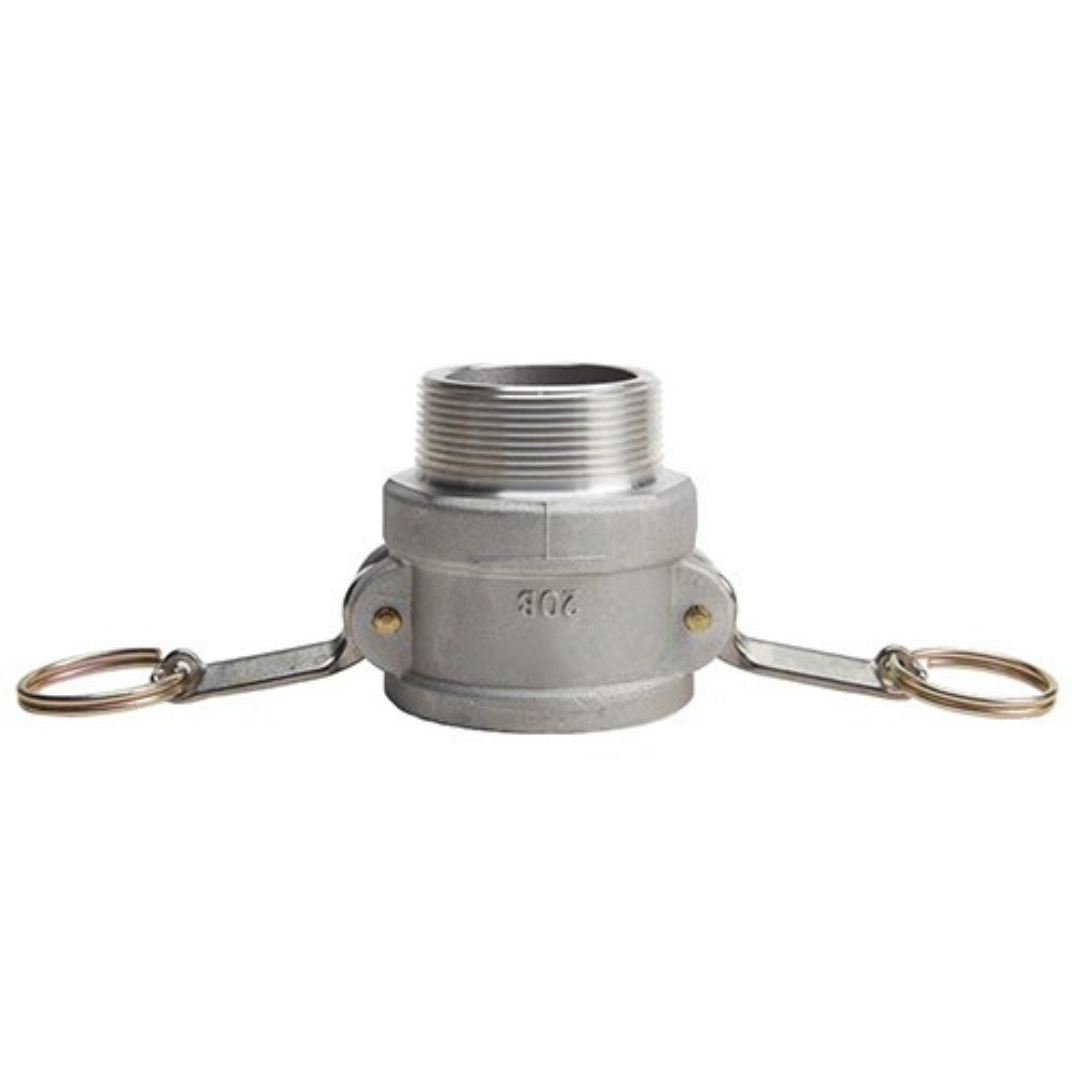

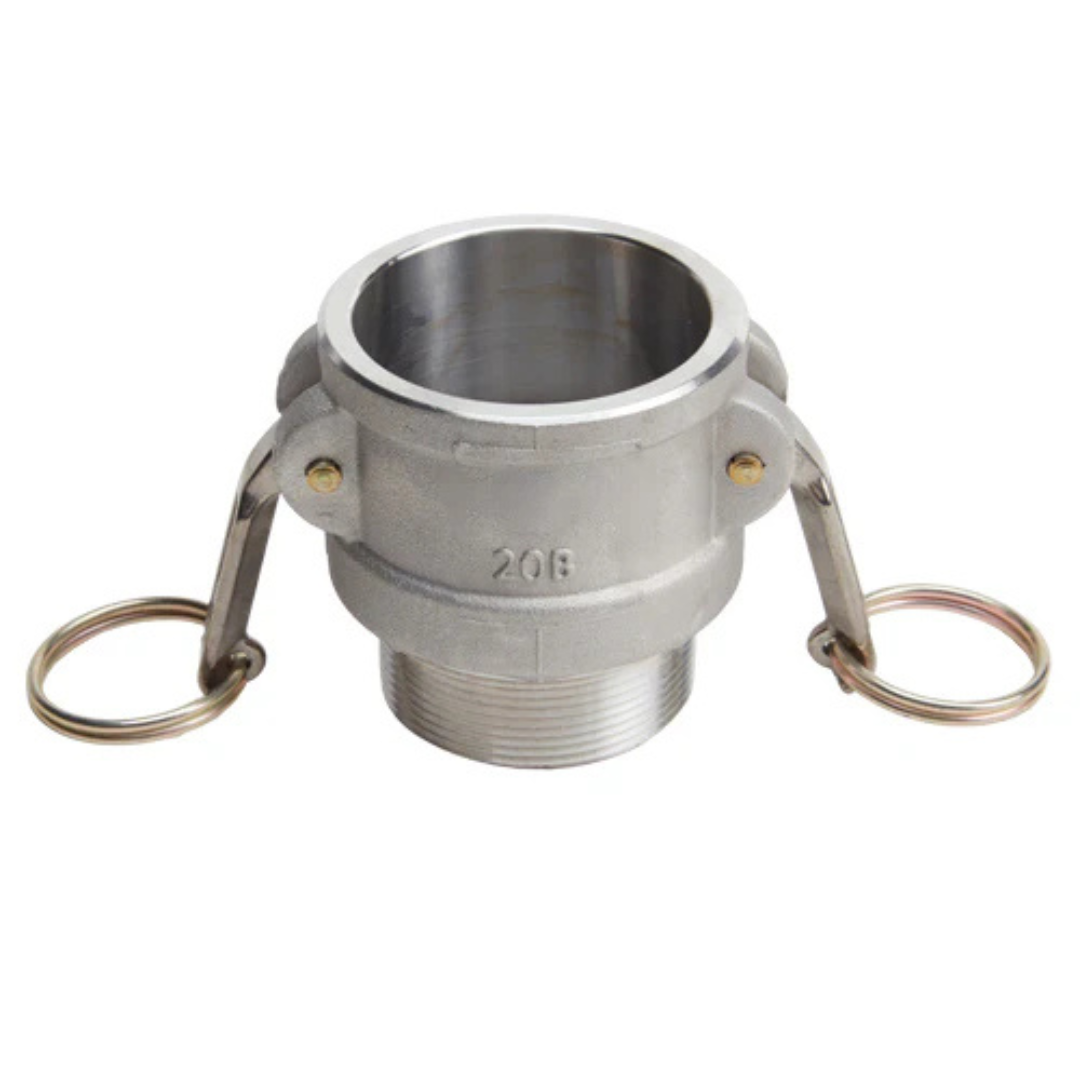

Global type "B" aluminum 2" Female Camlock (Cam & Groove) coupler to 2" Male NPT threads.
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections
- The 2" Female Camlock side of this adapter will only connect to 2" Male Camlock.
- The male threaded side of this adapter will only connect to a 2" Female National Pipe Tapered (NPT) or National Pipe Straight Hose (NPSH) thread, for example, PVC or metal pipe fitting
How it works
- To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The camlock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
