Four Wheel Assembly
Four Wheel Assembly
Regular price
$633.00
Regular price
Sale price
$633.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
$633.00
Optional Extra:

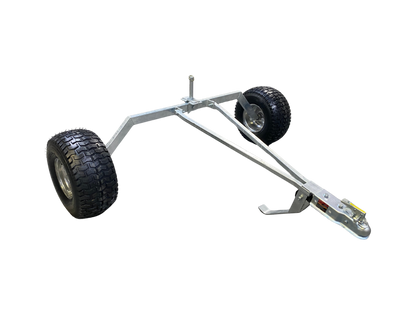

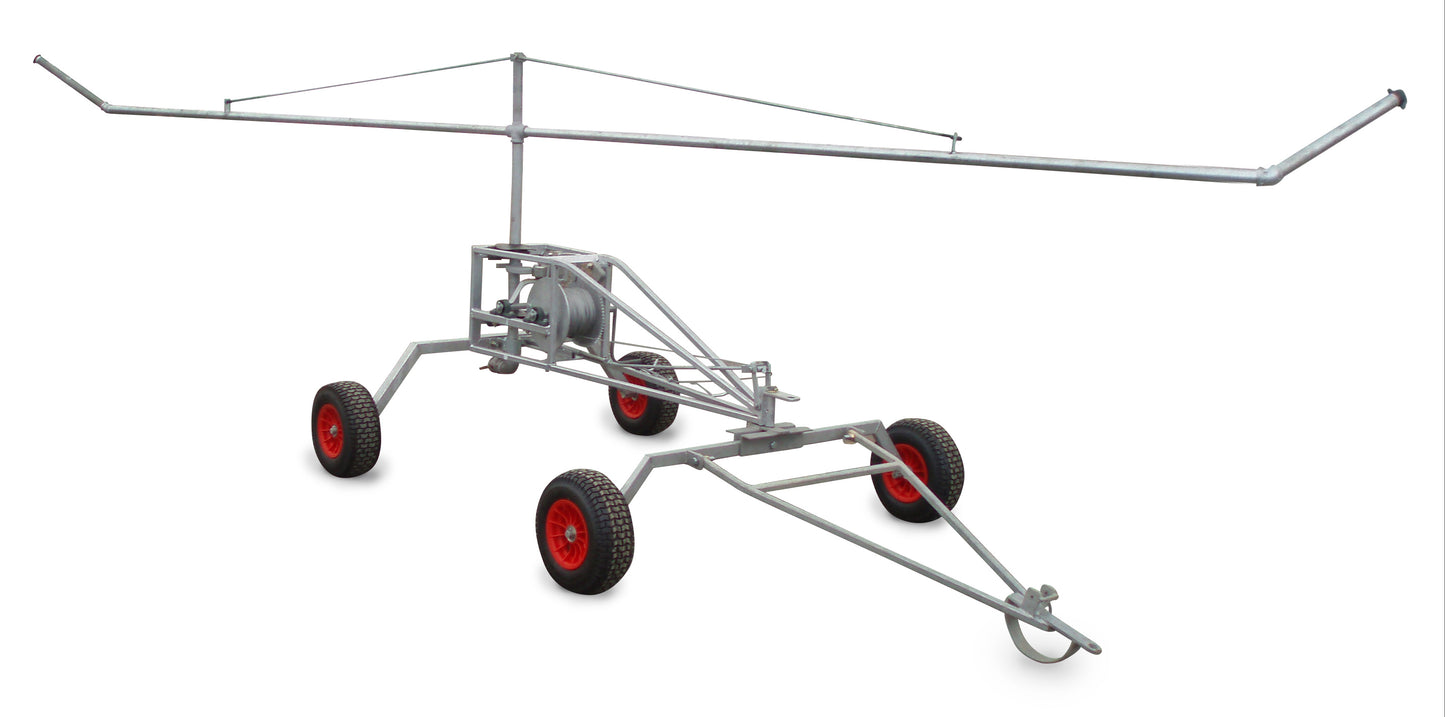

The Four Wheel Assembly is a versatile and essential addition to our irrigators. This option provides stability on rough terrain. With four wheels and a direct drive system, this assembly ensures smooth and efficient operation, making it a must-have for any irrigation system. Upgrade your irrigator with the Four Wheel Assembly and experience improved performance and ease of use.
Performance Indicators
| Nozzle | Flow (GPM) | PSI | Wetted Width (ft) | Area Covered (acres / 300 ft run) | Application Rate - 2 Hours (in) | Application Rate - 3 Hours (in) | Application Rate - 6 Hours (in) |
|---|---|---|---|---|---|---|---|
| 5/16" | 19 | 10 | 52 | 0.44 | 0.19 | 0.28 | 0.57 |
| 22.2 | 15 | 62 | 0.57 | 0.19 | 0.28 | 0.56 | |
| 25.4 | 20 | 72 | 0.64 | 0.18 | 0.27 | 0.54 | |
| 1/2" | 44.4 | 10 | 56 | 0.47 | 0.41 | 0.61 | 1.23 |
| 57.1 | 15 | 66 | 0.57 | 0.42 | 0.63 | 1.25 | |
| 63.4 | 20 | 75 | 0.67 | 0.43 | 0.64 | 1.28 | |
| 5/8" | 88.8 | 15 | 59 | 0.52 | 0.77 | 1.16 | 2.31 |
| 101.4 | 20 | 69 | 0.62 | 0.75 | 1.13 | 2.26 | |
| 114.1 | 25 | 79 | 0.72 | 0.73 | 1.10 | 2.20 |
