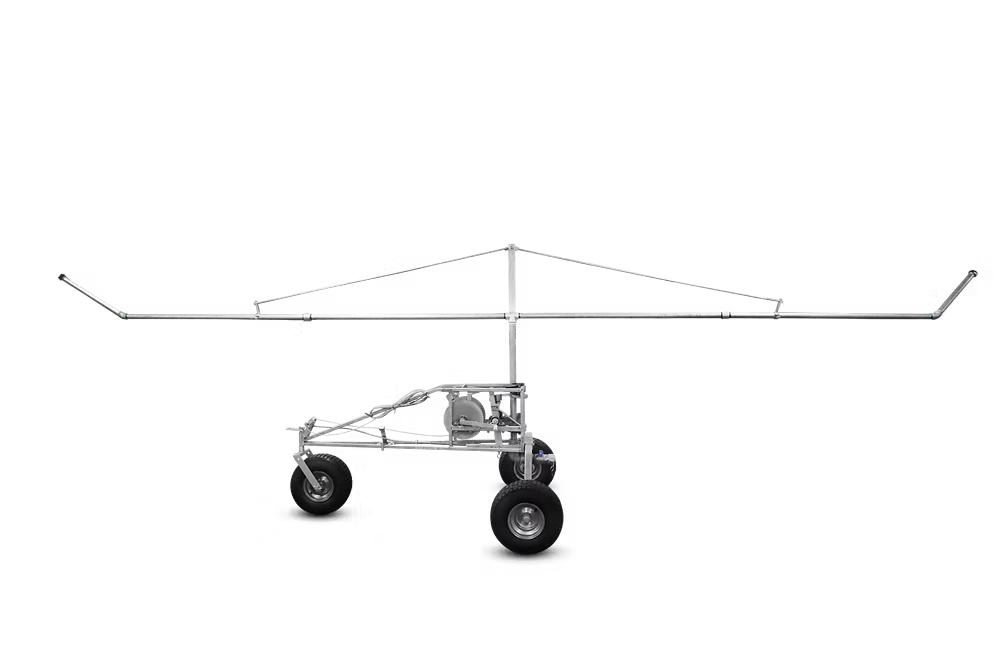

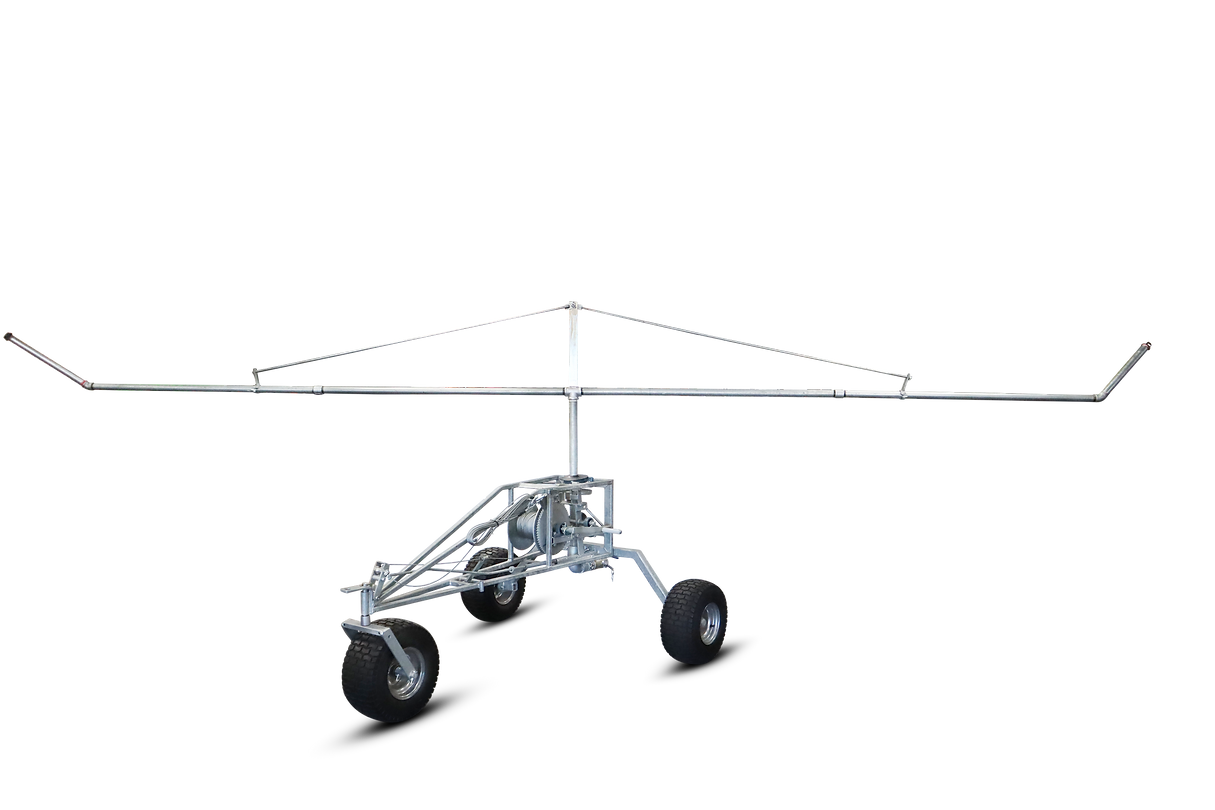

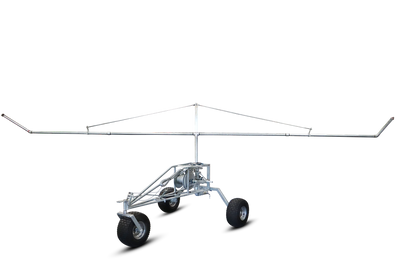

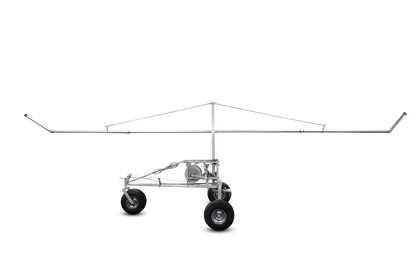

Standard Irrigator (22 Ft. boom, with a diameter spray up to 104 feet)
Standard Irrigator (22 Ft. boom, with a diameter spray up to 104 feet)
Couldn't load pickup availability
We offer FREE SHIPPING to your preferred terminal or business within the continental United States on all orders over $4,000.
Features:
- Operating pressures from 20 to 90 PSI
- Delivery volumes ranging from 30 GPM minimum to 128 GPM maximum
- 600 feet of Cable
- 900 Feet of Cable Optional
- Can pull up to 450 feet of 2inch lay flat hose. See hose layout in Tips & Tricks
- 30 to 128 Gallons Per Minute
- Superior design with low center of gravity to reduce stress and increase stability
- Hardened steel components to ensure rugged long life durability
- High grade steel and quality components used on all irrigators
- Hot Dip Galvanized
- Questions about custom options: vaughanirrigatorsusa@gmail.com 702.564-0910
|
Performance Indicators |
||||||||
|
Model |
Nozzle |
Flow Gal/Min |
Press - PSI |
Spray Width |
Area Covered - |
Application Inches |
||
|
|
12 |
6 |
4 |
|||||
|
STD 22ft Boom |
1/2' |
30 |
20 |
75’ |
1.14/1.52 |
0.8” |
0/4” |
.28” |
|
|
|
60 |
25 |
82’ |
1.24/1.65 |
1.4” |
0.7” |
0.4” |
|
108 |
30 |
95’ |
1.43/1.9 |
2.2” |
1.2” |
0.7” |
||
|
5/8” |
48 |
20 |
82’ |
1.24/1.65 |
0.9” |
0.5” |
0.3” |
|
|
|
78 |
25 |
92’ |
1.38/1.84 |
1.6” |
0.8” |
0.5” |
|
|
126 |
30 |
104’ |
1.58/2.10 |
2.5” |
1.4” |
0.8” |
||
|
3/4' |
48 |
20 |
75’ |
1.14/1.52 |
1.2” |
0.6” |
0.4” |
|
|
|
96 |
25 |
92’ |
1.38/1.84 |
2.0” |
1.0” |
0.7” |
|
|
126 |
30 |
104’ |
1.58/2.10 |
3.1” |
1.6” |
1.0” |
||
|
STD 35ft Boom |
1/2' |
30 |
20 |
98’ |
1.48/1.96 |
0.5” |
0.3” |
0.2” |
|
|
|
60 |
25 |
112’ |
1.68/2.23 |
0.9” |
0.5” |
0.3” |
|
108 |
30 |
118’ |
1.78/2.37 |
1.7” |
0.9” |
0.5” |
||
|
5/8” |
48 |
20 |
98’ |
1.48/1.96 |
0.7” |
0.4” |
0.2” |
|
|
|
78 |
25 |
115’ |
1.73/2.30 |
1.2” |
0.7” |
0.4” |
|
|
126 |
30 |
131’ |
1.98/2.63 |
2.0” |
1.1” |
0.7” |
||
|
3/4' |
48 |
20 |
92’ |
1.38/1.84 |
0.9” |
0.5” |
0.3” |
|
|
|
96 |
25 |
115’ |
1.73/2.30 |
1.6” |
0.8” |
0.5” |
|
|
126 |
30 |
125’ |
1.88/2.5 |
2.5” |
1.2” |
0.8” |
||
Performance Indicators
| Nozzle | Flow (GPM) | PSI | Wetted Width (ft) | Area Covered (acres / 300 ft run) | Application Rate - 2 Hours (in) | Application Rate - 3 Hours (in) | Application Rate - 6 Hours (in) |
|---|---|---|---|---|---|---|---|
| 5/16" | 19 | 10 | 52 | 0.44 | 0.19 | 0.28 | 0.57 |
| 22.2 | 15 | 62 | 0.57 | 0.19 | 0.28 | 0.56 | |
| 25.4 | 20 | 72 | 0.64 | 0.18 | 0.27 | 0.54 | |
| 1/2" | 44.4 | 10 | 56 | 0.47 | 0.41 | 0.61 | 1.23 |
| 57.1 | 15 | 66 | 0.57 | 0.42 | 0.63 | 1.25 | |
| 63.4 | 20 | 75 | 0.67 | 0.43 | 0.64 | 1.28 | |
| 5/8" | 88.8 | 15 | 59 | 0.52 | 0.77 | 1.16 | 2.31 |
| 101.4 | 20 | 69 | 0.62 | 0.75 | 1.13 | 2.26 | |
| 114.1 | 25 | 79 | 0.72 | 0.73 | 1.10 | 2.20 |
