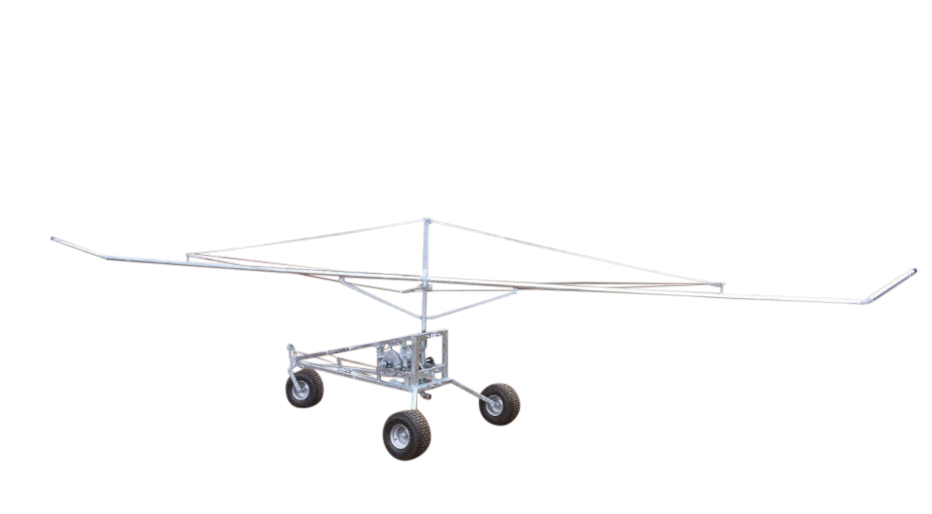

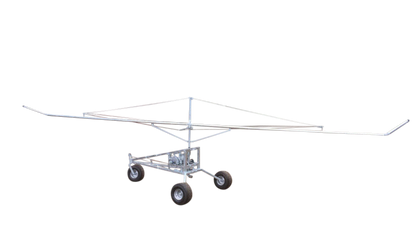

VCI MK1 (33 Ft. boom, with a diameter spray up to 138 feet)
VCI MK1 (33 Ft. boom, with a diameter spray up to 138 feet)
Couldn't load pickup availability
We offer FREE SHIPPING to your preferred terminal or business in the Continental United States on orders over $4,000
LEAD TIME (4 WEEKS)
Description
This irrigator is designed for the farmer who wants to put down large volumes over a smaller area. It comes standard with 900 feet of cable, 33 foot galvanized arms, simple mechanical operation with five easy to adjust speeds. All pivot points are housed in greased bearings, no gear box or water winch to cause trouble, heavy duty reinforced galvanized frame. Ideal for watering up to 30 acres of crops and pastures or effluent distribution.
Features
- 33 foot boom
- Standard 900 foot cable
- Optional 1200 ft of cable
- Can pull up to 600 feet of 2inch lay flat hose. See hose layout in Tips & Tricks
- 47 GPM minimum to 128 GPM maximum
- Throws up to 130 feet
- Full 2 inch riser and Arms
- Swept back axle
- Low center of gravity
- Heavy duty components
- Ideal for both effluent and water
- 25 - 90 psi
- All parts are Hot Dip Galvanized
- Optional front steer assembly
- Questions about custom options: vaughanirrigatorsusa@gmail.com 702.564-0910
|
Performance Indicators |
||||||||
|
Model |
Nozzle |
Flow Gal/Min |
Press - PSI |
Spray Width |
Area Covered - |
Application Inches |
||
|
|
18 |
12 |
6 |
|||||
|
VCI-MK1 33ft Boom |
1/2” |
0.79/47 |
30 |
112’ |
2.52/3.15 |
0.70” |
0.47” |
0.24” |
|
|
|
1.32/79 |
35 |
121’ |
2.74/3.43 |
1.18” |
0.78” |
0.39” |
|
2.11/127 |
40 |
131’ |
2.96/3.7 |
1.69” |
1.14” |
0.55” |
||
|
5/8” |
1.05/63 |
30 |
118’ |
2.67/3.34 |
0.94” |
0.62” |
0.31” |
|
|
|
1.84/110 |
35 |
138’ |
3.11/3.88 |
1.41” |
0.94” |
0.47” |
|
|
2.37/128 |
40 |
142’ |
3.34/3.98 |
1.48” |
1.40” |
0.55” |
||
|
3/4” |
1.05/63 |
30 |
118’ |
2.67/3.34 |
0.94” |
0.63” |
0.31” |
|
|
|
2.11/127 |
35 |
131’ |
2.96/3.7 |
1.69” |
1.14” |
0.55” |
|
|
2.64/128 |
40 |
138’ |
3.11/3.88 |
2.00” |
1.33” |
0.67” |
||
Performance Indicators: Junior Irrigator
| Nozzle | Flow (GPM) | PSI | Wetted Width (ft) | Area Covered (acres / 300 ft run) | Application Rate - 2 Hours (in) | Application Rate - 3 Hours (in) | Application Rate - 6 Hours (in) |
|---|---|---|---|---|---|---|---|
| 5/16" | 19 | 10 | 52 | 0.44 | 0.19 | 0.28 | 0.57 |
| 22.2 | 15 | 62 | 0.57 | 0.19 | 0.28 | 0.56 | |
| 25.4 | 20 | 72 | 0.64 | 0.18 | 0.27 | 0.54 | |
| 1/2" | 44.4 | 10 | 56 | 0.47 | 0.41 | 0.61 | 1.23 |
| 57.1 | 15 | 66 | 0.57 | 0.42 | 0.63 | 1.25 | |
| 63.4 | 20 | 75 | 0.67 | 0.43 | 0.64 | 1.28 | |
| 5/8" | 88.8 | 15 | 59 | 0.52 | 0.77 | 1.16 | 2.31 |
| 101.4 | 20 | 69 | 0.62 | 0.75 | 1.13 | 2.26 | |
| 114.1 | 25 | 79 | 0.72 | 0.73 | 1.10 | 2.20 |
Performance Indicators: Standard Irrigator
| Nozzle | Flow (GPM) | PSI | Wetted Width (ft) | Area Covered (acres / 600 ft run) | Application Rate - 4 Hours (in) | Application Rate - 6 Hours (in) | Application Rate - 12 Hours (in) |
|---|---|---|---|---|---|---|---|
| 1/2" | 30 | 20 | 75 | 1.14 | 0.28 | 0.4 | 0.8 |
| 60 | 25 | 62 | 0.57 | 0.19 | 0.28 | 0.56 | |
| 108 | 30 | 72 | 0.64 | 0.18 | 0.27 | 0.54 | |
| 5/8" | 48 | 20 | 56 | 0.47 | 0.41 | 0.61 | 1.23 |
| 78 | 25 | 66 | 0.57 | 0.42 | 0.63 | 1.25 | |
| 126 | 30 | 75 | 0.67 | 0.43 | 0.64 | 1.28 | |
| 3/4" | 48 | 20 | 59 | 0.52 | 0.77 | 1.16 | 2.31 |
| 96 | 25 | 69 | 0.62 | 0.75 | 1.13 | 2.26 | |
| 126 | 30 | 79 | 0.72 | 0.73 | 1.10 | 2.20 |
